Product jig for the positioning of two PCBs and one ribbon cable.

Hot Bar Soldering of the ribbon cable on both PCBs in one process step.

Fine adjustment of the soldering pads on the PCBs by means of x-axis.

The ribbon cable is held in position by vacuum.

Product jig for positioning of an LCD on a PCB.

By means of a basic xy-stage the connection flex of the LCD can be aligned with the soldering pads on the PCB.

Product jig with assembly fixture for the soldering of an LCD-connection flex on a PCB.

Placing in of the PCB and the display (incl. housing), adjusting of the flex in x-axis and following Hot Bar Soldering of the connection.

After the soldering process the display and the housing are moved onto the PCB and snapped into place.

After the assembling process the fixture can be opened and the product can be removed.

Product jig for the soldering of stranded wires.

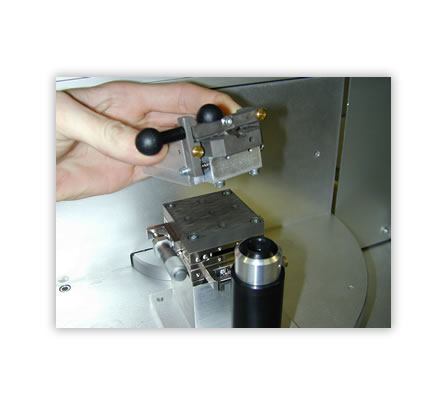

Different supports can be mounted on the basic construction with an XY- stage.

Clamping device for the cable.

Product jig with assembly fixture for the soldering of an LCD-connection flex on a PCB.

Placing in of the PCB and the display (incl. housing), adjusting of the flex in x-axis and following Hot Bar Soldering of the connection.

After the soldering process the display and the housing are moved onto the PCB and snapped into place.

After the assembling process the fixture can be opened and the product can be removed.

Product jig with assembly fixture for the soldering of an LCD-connection flex on a PCB.

Placing in of the PCB and the display (incl. housing), adjusting of the flex in x-axis and following Hot Bar Soldering of the connection.

After the soldering process the display and the housing are moved onto the PCB and snapped into place.

After the assembling process the fixture can be opened and the product can be removed.
