Example 7

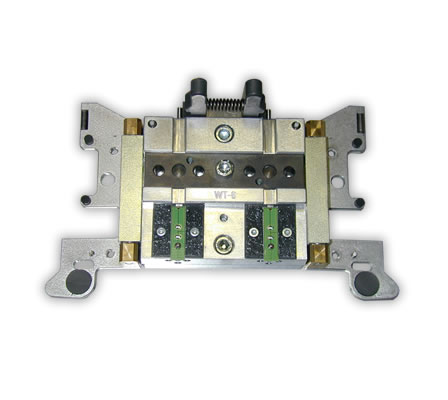

Double product jig for the soldering of ribbon cables.

Two products can be positioned in the jig simultaneously.

Each is held in position by means of a clamping device.

The soldering areas are thermally insulated.

Hot Bar Soldering - Example 7
Product Images
  • Example 7Example 7
  • Example 7Example 7
  • Example 7Example 7

Example 1

Product jig for positioning of an LCD on a PCB.

By means of a basic xy-stage the connection flex of the LCD can be aligned with the soldering pads on the PCB.

Hot Bar Soldering - Example 1
Product Images
  • Example 1Example 1
  • Example 1Example 1
  • Example 1Example 1

Example 2

Product jig with assembly fixture for the soldering of an LCD-connection flex on a PCB.

Placing in of the PCB and the display (incl. housing), adjusting of the flex in x-axis and following Hot Bar Soldering of the connection.

After the soldering process the display and the housing are moved onto the PCB and snapped into place.

After the assembling process the fixture can be opened and the product can be removed.

Hot Bar Soldering - Example 2
Product Images
  • Example 2Example 2
  • Example 2Example 2
  • Example 2Example 2

Example 3

Product jig for the soldering of stranded wires.

Different supports can be mounted on the basic construction with an XY- stage.

Clamping device for the cable.

Hot Bar Soldering - Example 3
Product Images
  • Example 3Example 3
  • Example 3Example 3
  • Example 3Example 3

Example 4

Product jig with assembly fixture for the soldering of an LCD-connection flex on a PCB.

Placing in of the PCB and the display (incl. housing), adjusting of the flex in x-axis and following Hot Bar Soldering of the connection.

After the soldering process the display and the housing are moved onto the PCB and snapped into place.

After the assembling process the fixture can be opened and the product can be removed.

Hot Bar Soldering - Example 4
Product Images
  • Example 4Example 4
  • Example 4Example 4
  • Example 4Example 4

Example 5

Product jig with assembly fixture for the soldering of an LCD-connection flex on a PCB.

Placing in of the PCB and the display (incl. housing), adjusting of the flex in x-axis and following Hot Bar Soldering of the connection.

After the soldering process the display and the housing are moved onto the PCB and snapped into place.

After the assembling process the fixture can be opened and the product can be removed.

Hot Bar Soldering - Example 5
Product Images
  • Example 5Example 5
  • Example 5Example 5
  • Example 5Example 5
